FGP Configuratuion Files

Configuration file for ASIC/2-7540     Configuration file for ASIC/2-8540

Overview

These configuration files contain a base allocation, and some base Function Groups. Theses files are a starting point for a new controller, and provide a base to build upon.

Allocation

Number	Acronymn	Name	# of Indexes
1	SYS	System	1
2	REM	Remote Point	1
3	OUT	Output	16/8
4	SCH	Schedule	1
5	INP	Input	16/8
6	BLR	Boiler	1
7	TWR	Cooling Tower	1
8	STA	State	1
9	AFT	Afterhours	1
10	OPT	Optimum Start	1
11	DEM	Demand	1
12	CLK	Clock	1
13	POL	Poll List	1
14	ALR	Alarms	1
15	ANO	Analog Output	1
16	UTL	Utility	1
17	MGR	Poll Manager	1
18	PID	PID Loop	1
19	BRD	Broadcast	1
20	LOG	Logic	1
21	TIM	Timer	1
22	CAL	Calculated Point	1
23	TRD	Trend	1
24	DSM	Display Manager	-
25	DSL	Display List	-
26	CNT	Counter	1
27	STD	Static Trend	1
28	EVM	Event Manager	-
29	EVL	Event List	-
30	FUN	Functions	1
31	SEQ	Sequence	1
32	LG2	Logic 2	1
33	MON	Monitor	1
34	DIL	Dial Manager	1
35	ENC	Encode	1
36	CDR	Calendar	1
37	NOT	Notify	1
38	NLG	Notify Log	1
39	MBM	Modbus Master	0

Function Groups

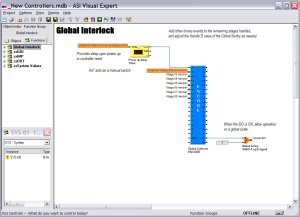

Global Interlock

This FGP provides a manner to interlock the entire controller's operation, providing all your sequences point back to this group.

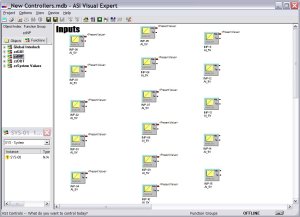

Inputs

This FGP provides a place to link to all of your Inputs using Published Points.

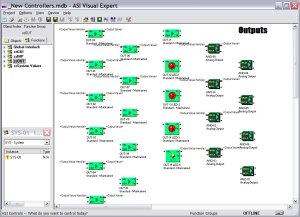

Outputs

This FGP provides a place to link to all of your Outputs using Published Points.

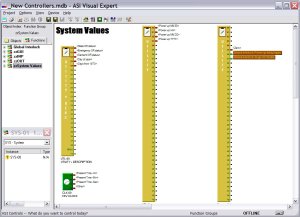

System Values

This FGP provides a place to link to your Utility and Clock Object values using Published Points.

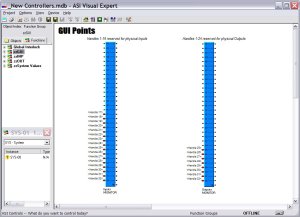

GUI Points

This FGP provides a place to link to your Monitor Objects using Published Points. The Monitor Object is used to get points into WebLink.
